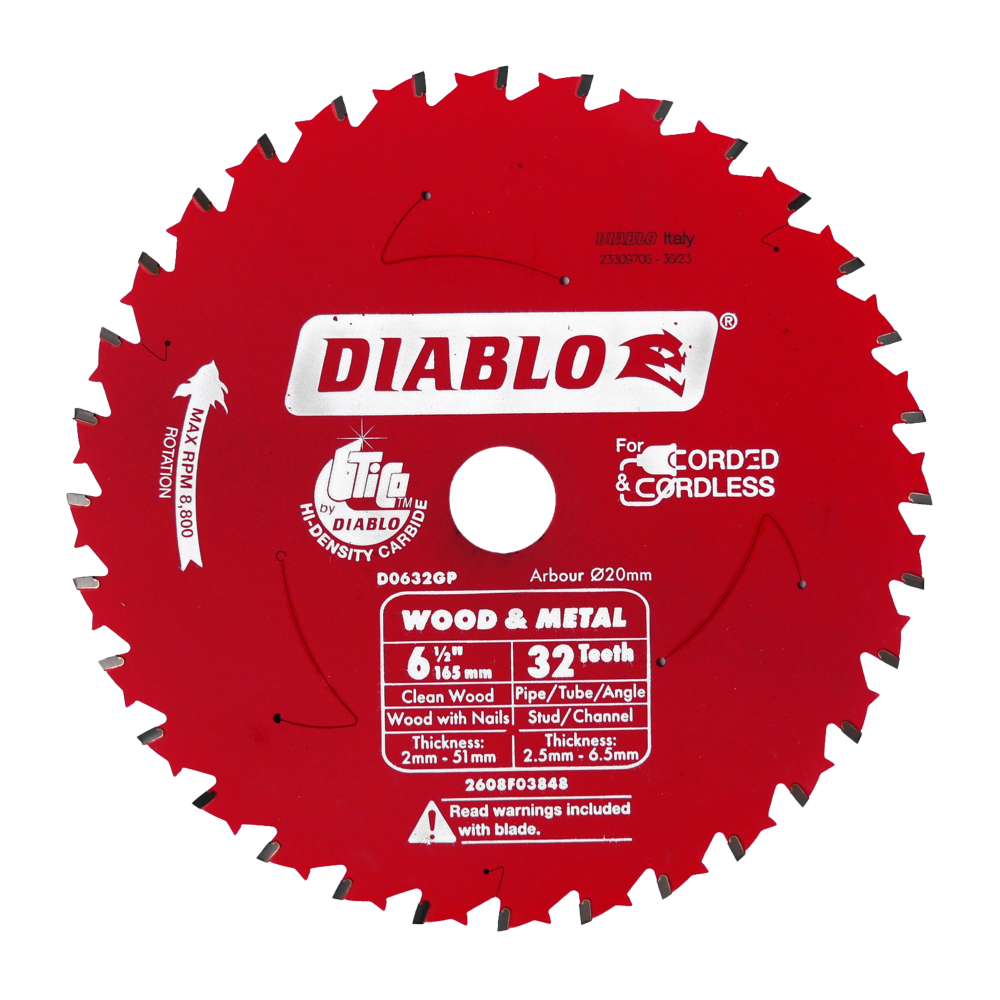

6.5 in. / 165mm 32T Wood & Metal Carbide Saw Blade











6.5 in. / 165mm 32T Wood & Metal Carbide Saw Blade
- Specially formulated Diablo TiCo Carbide withstands impact, reduces wear and lasts longer in wood and metal cutting applications
- Chamfer-Alternate Top Bevel (C-ATB) tooth design cleanly shears through wood while providing the durability needed for clean, burr-free cuts in metal
- Tri-Metal Shock Resistant Brazing allows carbide tips to withstand extreme impact for maximum durability in wood and metal applications
- Perma-SHIELD non-stick aluminum coating protects the blade against heat, gumming and corrosion
- Advanced Laser Cut Stabilizer Vents traps noise and vibration for maximum stability, keeping the blade cool with accurate cuts in wood and metal
- Laser Cut Thin Kerf Design provides less resistance and heat build-up for ease of cut, accuracy and long cutting life in wood and metal
- Laser Cut Arbor reduces vibration and premature wear for accurate blade rotation on corded and cordless saws
- Cuts up to 51mm material thickness in clean wood & wood with nail cutting applications
- Cuts 2.5mm - 6.5mm wall thickness in steel studs, channel, angle iron, pipe and tubing
- Cuts 6.5mm - 25.5mm diameter threaded rod
Product
Overview
Diablo’s new 6.5 in. / 164mm Wood & Metal saw blade is the industry’s first multi-purpose saw blade for cutting clean wood and wood with nails, up to 51mm material thickness; and metal ranging from 2.5mm - 6.5mm wall thickness and 6.5mm - 25.5mm diameter. The versatility of these new blades provides the ability to use the same blade to cut wood and metal so now users can focus on completing the job more efficiently rather than wasting time with changing tools and saw blades. The Diablo made TiCo carbide tips, which are specially designed for this blade, coupled with the blade’s Chamfered-Alternate Top Bevel (C-ATB) tooth design provides impact resistance for cutting wood with nails as well as the durability for creating clean, burr free cuts in metal. Optimized for corded and cordless saws, this new blade cuts wood with nails, angle iron, channel, steel studs and threaded rod.
- Specially formulated Diablo TiCo Carbide withstands impact, reduces wear and lasts longer in wood and metal cutting applications
- Chamfer-Alternate Top Bevel (C-ATB) tooth design cleanly shears through wood while providing the durability needed for clean, burr-free cuts in metal
- Tri-Metal Shock Resistant Brazing allows carbide tips to withstand extreme impact for maximum durability in wood and metal applications
- Perma-SHIELD non-stick aluminum coating protects the blade against heat, gumming and corrosion
- Advanced Laser Cut Stabilizer Vents traps noise and vibration for maximum stability, keeping the blade cool with accurate cuts in wood and metal
- Laser Cut Thin Kerf Design provides less resistance and heat build-up for ease of cut, accuracy and long cutting life in wood and metal
- Laser Cut Arbor reduces vibration and premature wear for accurate blade rotation on corded and cordless saws
- Cuts up to 51mm material thickness in clean wood & wood with nail cutting applications
- Cuts 2.5mm - 6.5mm wall thickness in steel studs, channel, angle iron, pipe and tubing
- Cuts 6.5mm - 25.5mm diameter threaded rod
Technical
Specifications
- Diameter 6.5" / 165mm
- Kerf 1.5 mm
- Plate 1.3
- Teeth 32
- Application Multi-Purpose Material
- Arbor 20mm
- Item # 2608F03848
- Barcode 4059952692166
- Short Code D0632GPA
